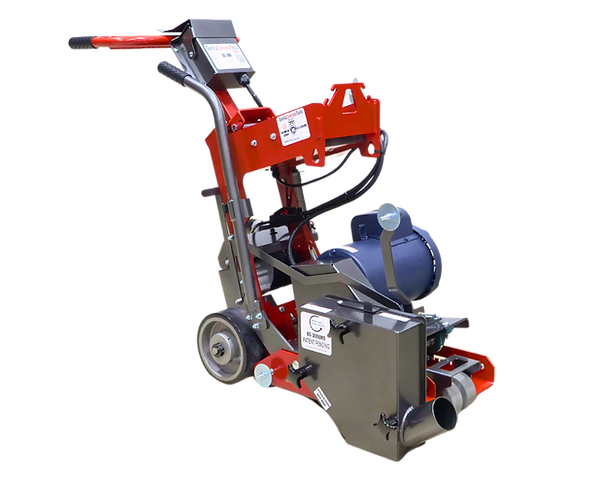

GS-300 EM | Electric Self-Propelled Joint Milling Saw
The GS-300 EM is an electric, self-propelled joint milling saw designed for high-torque wide-pass cutting and joint restoration. Powered by a 240V, 5 HP motor and featuring a Posi-Traction drive system, it efficiently mill joints up to 1" wide and 2" deep while maintaining excellent silica dust containment.
Features
-
Patent-Pending Wide-Cut Dust Box: High-efficiency enclosure captures silica dust at the point of cut during wide-pass milling.
-
Posi-Traction Drive System: High-torque variable-speed drive maintains steady forward traction and consistent cut speeds across the slab.
-
Stackable Blade Capability: Houses blade stacks up to 1" wide for efficient joint rebuilding, widening, and spall repair in a single pass.
-
Linkage-Controlled Pointer: Front pointer arm adjusts easily via manual linkage to quickly retract when terminating cuts.
-
Centered Lifting Hook: Perfectly balanced lifting point enables safe, single-point loading and transport around the jobsite.
-
Integrated Wrench Holder: Keeps essential tools secured directly on the frame for fast blade stack changes.
240 volts, 5 HP
High Torque Electric Drive with Variable Speed
Stackable up to 1 inch wide
Adjustable to 2"
8"
7/8"
300 lbs.
350 CFM
Specifications
Motor:
Drive:
Cutting Width:
Cutting Depth:
Blade Size:
Arbor Size:
Weight:
Vacuum Requirements:
